What to ask for in a Contour Survey

The first step once you buy land is to do a comprehensive contour survey of the land. A contour survey map is a map that contains information about all existing features of your land, especially the topography. The topography is represented by contour lines - lines that connect points of equal elevation on the land. However, there are other elements to request in a contour survey to ensure a thoughtful and ecologically sensitive approach, and to ensure that one can begin with a detailed map of all that exists on ground:



Boundary and Fencing:

Boundary and fencing surveys may include the following:

  • Clear/distinct/precise boundaries

  • Unclear / disputed boundaries

  • Dimensions of the land

  • Extents of kharaab land if applicable

The boundaries can be fenced edges (chain link, barbed wire etc.) and/or unfenced edges.

Fig 1: The site boundaries highlighted in red.


Contour lines

The purpose of contour lines is to represent the 3D shape of the terrestrial surface on a 2D map.

  • 0.5m contour interval is preferable and necessary to know detailed topography

  • For very large lands, one can begin with 1m interval

  • For smaller lands, 0.25m interval is better

  • Contour lines should extend beyond the site as well

Fig#2: The concentric lines (marked in red dotted line) showing contour lines at 1m interval.


Built structures

  • Roof plans of existing structures

  • Floor plans of existing structures if available

  • Dimensions

  • Details on what the structure is (shed, home, staff quarters, barn etc.)

Fig#3: The figure shows the central built structure with dimensions and topography.


Power lines, with

  • Location of utility poles and over-head power lines

  • Location of transformers and transmission towers if present

Fig#4: The figures shows the power line (marked in yellow).


Vegetation

The vegetation is a significant indicator of the biologically active zones/biodiversity zones, invasive species and may signal the presence of groundwater distribution. It includes the following:

  • Mature trees, grassland and shrubs

  • Fruit and flower orchards

  • Identified species and species density in a particular part of the land

  • Girths of mature trees

  • Canopy extension and ground cover

Fig#5: Figure shows the distribution and variety of trees across a particular area.


Field Bunds and Terraces:

  • Field bunds and terrace structures on a map include (mostly) artificial sloping/compartmentalizing of the land.

  • Planning around these bunds/existing earthworks along with contour data can be beneficial while designing and implementing the design.


Water bodies with levels:

The following water bodies can and should be present on a base map.

  • Ponds

  • Nalas

  • Streams/Springs

  • Rivers

  • Wetlands

  • Tanks

  • Depressions

  • Seasonal puddles

Fig#6: Survey map showing water bodies in, around and entering the land.


Roads and Pathways:

  • All-access roads, paved / unpaved, that run adjacent to the land, with levels

  • Type of road (tar, concrete, mud, etc.)

  • Width of road

  • Walking paths across site

  • Widths of the same

  • Type of pathway (mud, gravel, paved, etc.)

Fig#7: Figure shows access roads (in brown)


Borewells & open wells

  • Locations of borewells and open wells

  • Dimensions of open wells

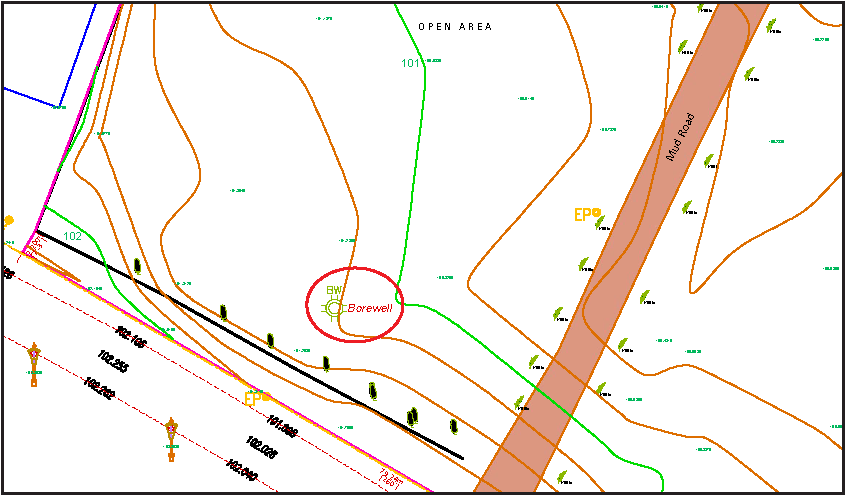

Fig#8: Survey map showing the borewell (marked in red)


Other important features that can be included in the map:

  • Soil mounds

  • Trunks of trees that have been cut

  • Termite mounds

  • Historical structures

  • Gravestones / graveyards

  • Temples or shrines

  • Utility lines (water, gas, etc.)

  • Land use of the neighbouring lands (orchard, forest, agricultural land, etc.)

  • Bus stops adjoining the land

The more detailed the contour survey map, the easier it will be to read the land and start planning it. Some information needs to be included in the contour survey - boundaries, contour lines, tree locations, built structures, field bunds & terraces, power lines, roads, rock outcrops. Other information can also be marked while walking the land with the contour survey in hand.

Finally, the contour survey map should be in two formats, PDF and CAD, for ease of use while designing.

Happy surveying! :)
